PRODUCT DETAILS

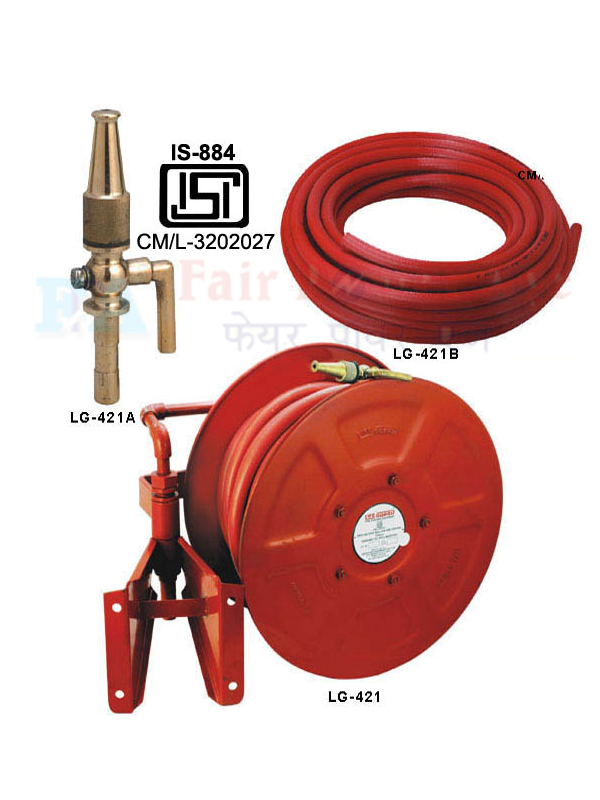

FIRST-AID HOSE REEL Technical Specifications : Type : Swinging 180° Wall Mounting Size : Inlet 20mm (3/4" BSP Thread Size) Conforming Specification : IS 884 Material of Construction : Hub Sides & Wall Bracket - M.S. Sheet of IS:513 Swivel Joint - LTB-2 of IS:318 Pipe with Fitting - Steel of IS:1239 Part I Branch Pipe with Nozzle - IS:8090 Hose Reel Tubing - Thermoplastic Hose (IS:12585) Hydraulic Rubber Hose Conf to IS:444 Performance Test : Hydrostatic Test : Tested at 21 Kgf/cm² Range & Water Flow rate test at 7 Kgf/cm² (A) Discharge : 24LPM (B) Range (Jet Length) : 6mtr(min)
